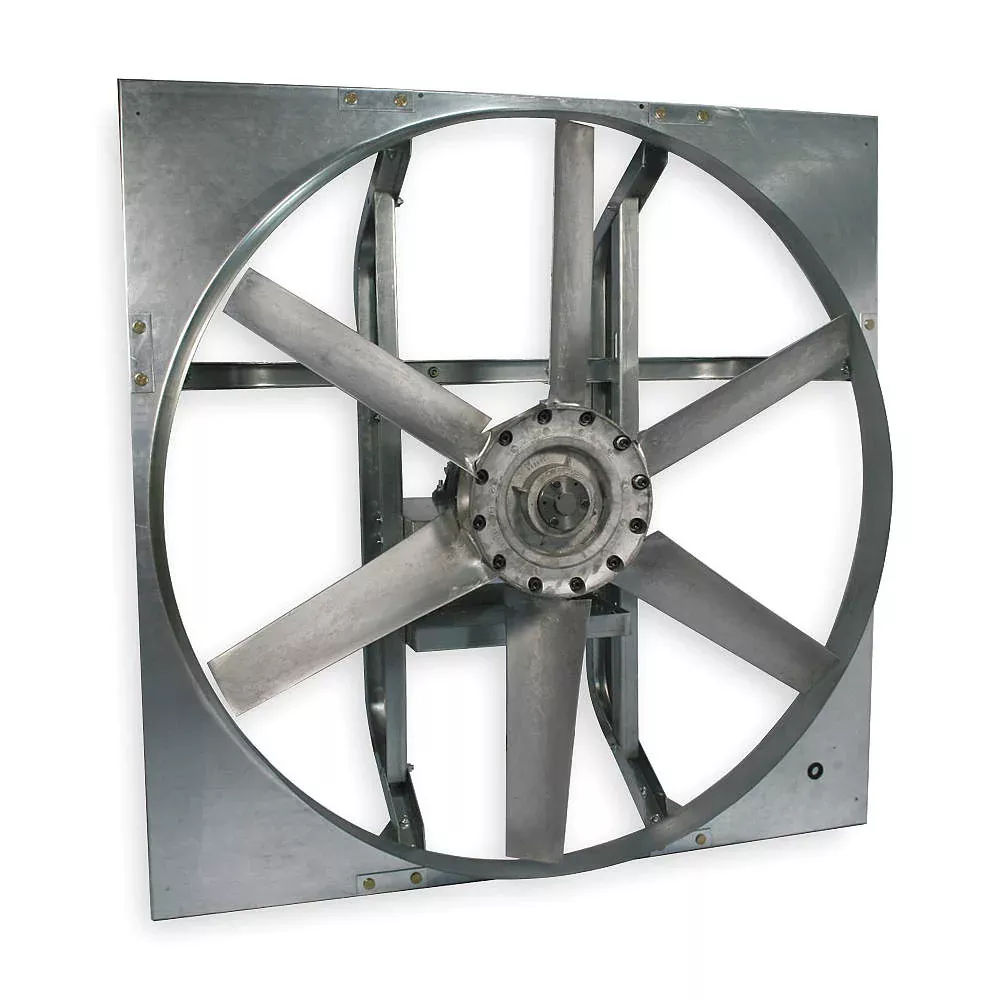

Exhaust Fan,Type: Heavy Duty Belt Drive Less Drive Package , Cfm Range: 20,652 To 30,825, Exhaust/Supply Fan Motor Hp: 1 To 5, Max Ambient Temp: 104 F, Rpm Range: 605 To 903, Bearing Type:
Regreasable Cast Pillow Block, Mounting Position: Horizontal Or Vertical, Frame Material:
Galvanized Steel, Propeller Material: Cast Aluminum, Number Of Blades: 6, Bearing And Shaft Size:
11/2″, Flange Depth: 2″, Blade Diameter: 42″, Height: 46″, Width: 46″, Max Depth: 263/8″, Venturi Clearance Diameter: 421/2″, Venturi Depth: 6″, Weight: 235 Lbs, Made In Mexico. Requires: Wall Collar And Shutter For New Installation.
Has Damage
